Premium Thermal Pad
Technical Specifications
Due to their oriented structure, these VACNTs (: Vertically Aligned Carbon Nanotubes) have the advantage of not having a CNT-CNT junction and are free of any contact resistance.
Thus, the most demanding electronic component of your equipment fully benefits from the high thermal conductivity of the DG-PTP, up to 25W/m.K at only 10% compression.
The DG-PTP is an alternative to well-known TIM thermally conductive interfaces with a high thermal conductivity, as soon as its electrical conductivity is not a problem in the applications where it is used.

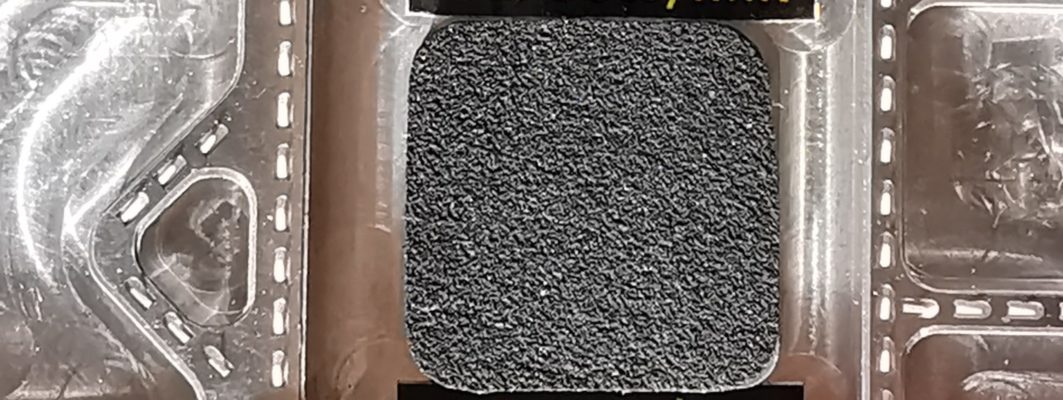

The DG-PTP is available in sheets and shaped cut pieces. We produce these cut pieces on our CNC machine, fast and without the need for tools.
| Reference | Thermal Conductivity (W/mK) | Hardness (Shore 00) | Breakdown Voltage (Vac/mil) |
|---|---|---|---|
| DG-PTP1500 | 15 | 45 | ≤100 |
| DG-PTP2500 | 25 | 50 | ≤100 |
Learn more
Free download of the technical datasheet
For any other question about this product or to request a quote, click here.
